• Brand Name: XTYDIAG
  • Certification: CE
  • Origin: CN(Origin)
  • Special Features: Bluetooth
  • Software Version: 2017.R1
  • Software Update: Yes

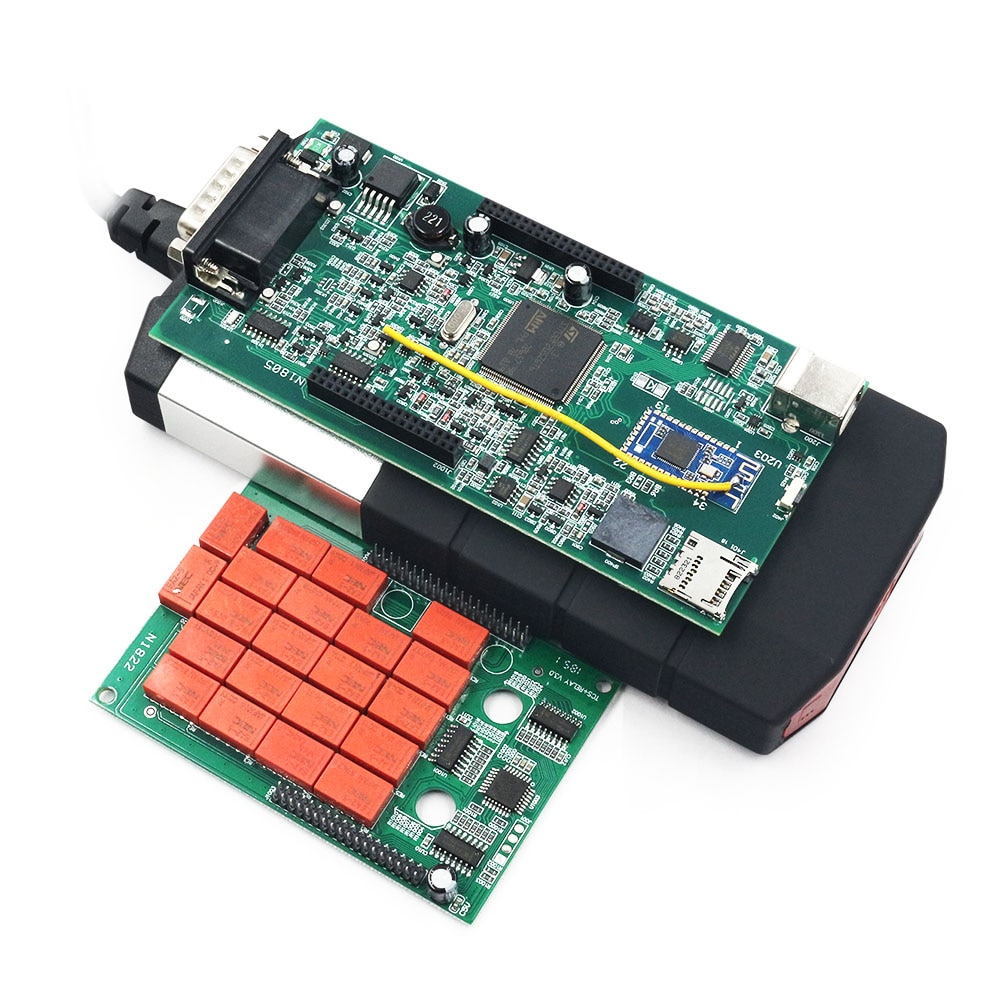

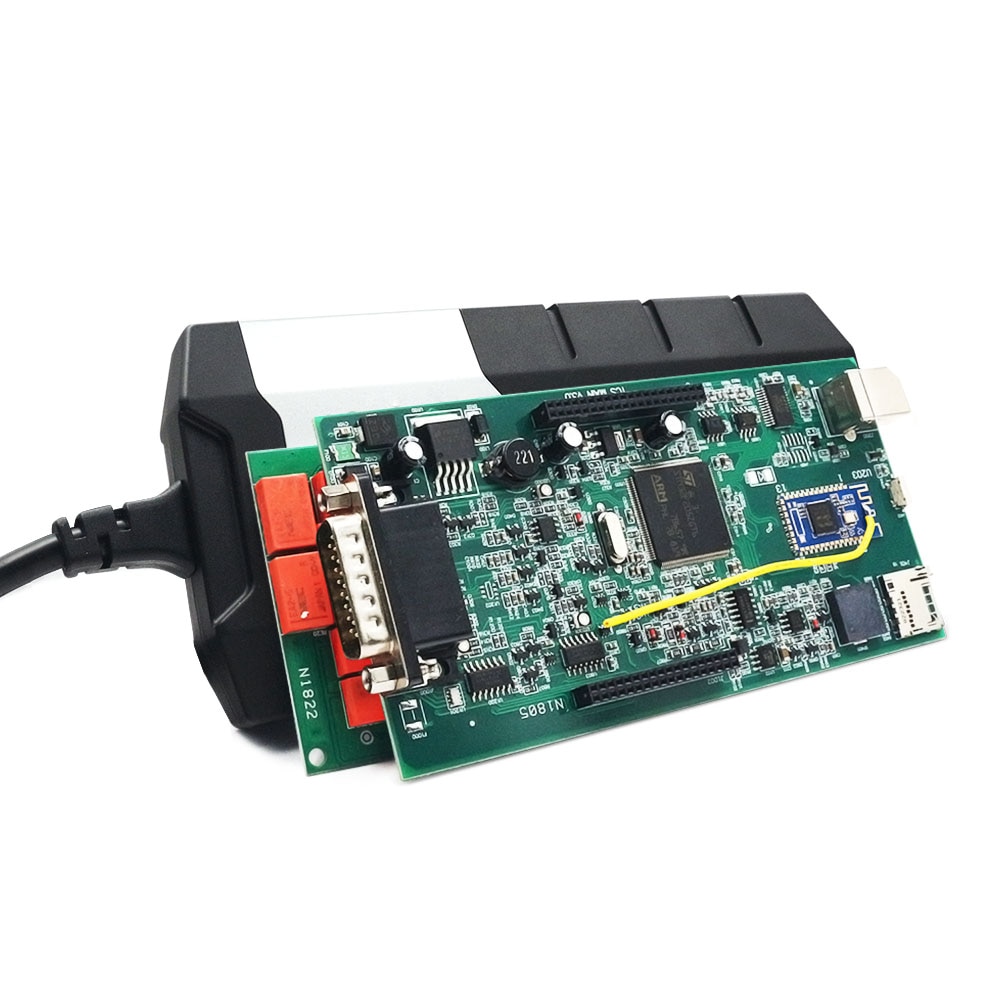

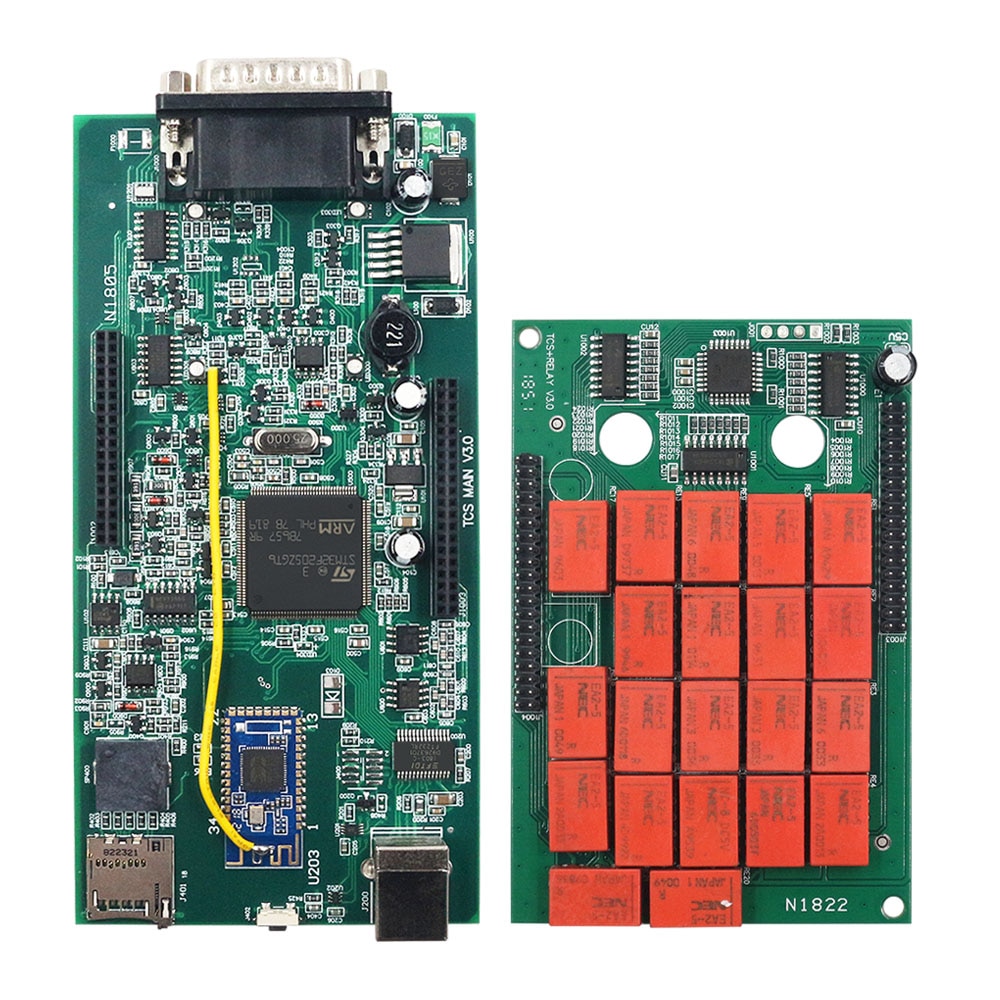

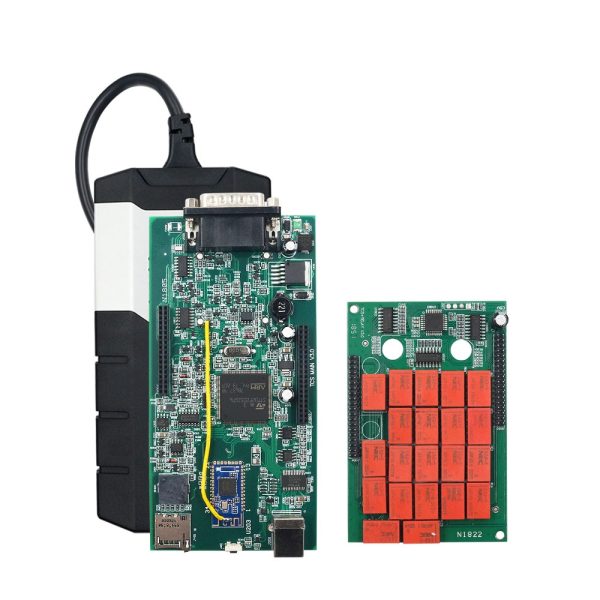

  • Hardware Version: Double Green PCB
  • Item Type: Code Readers & Scan Tools
  • Item Name: Multidiag Pro TCS PRO
  • Support operating system: Win7 32bit
  • Car Maker: Most of models can work
  • Supported Language: Multi-Languages
  • PCB Quality: Best Quality Double PCB
  • Support Cars: Multi-brands
  • Chip: CYPRESS AN2135SC Full Chip
  • Shipping: Within 3 Working Days
  • Warranty: 3 years

TCS Multidiag 2017.R1 2016.R0 Keygen Software V3.0 9241A Double Green PCB V9.0 OBDII Code Reader Truck Diagnostic Tool Multidiag PRO

TCS Scanner is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.
With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards.
A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages.

Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out).


1. Supported Language

English, Spanish, French, Italian, Portuguese, Czech, Bulgarian, Finnish ,Danish, German, Turkish, Greek, Dutch, Hungarian, Norwegian, Polish, Romanian, Russian, Serbian,Swedish, Croatian(Support 21 languages)

2. Support OS

Win XP / Win 7 32bit/Win10 32bit ( Not support 64bit )

3. Software Version


2016.R1 with keygen, can activate by yourself.

2017.1 without keygen, need send the file to seller to activated.

4. Can work for CAR + TRUCK + Generic 3 in 1

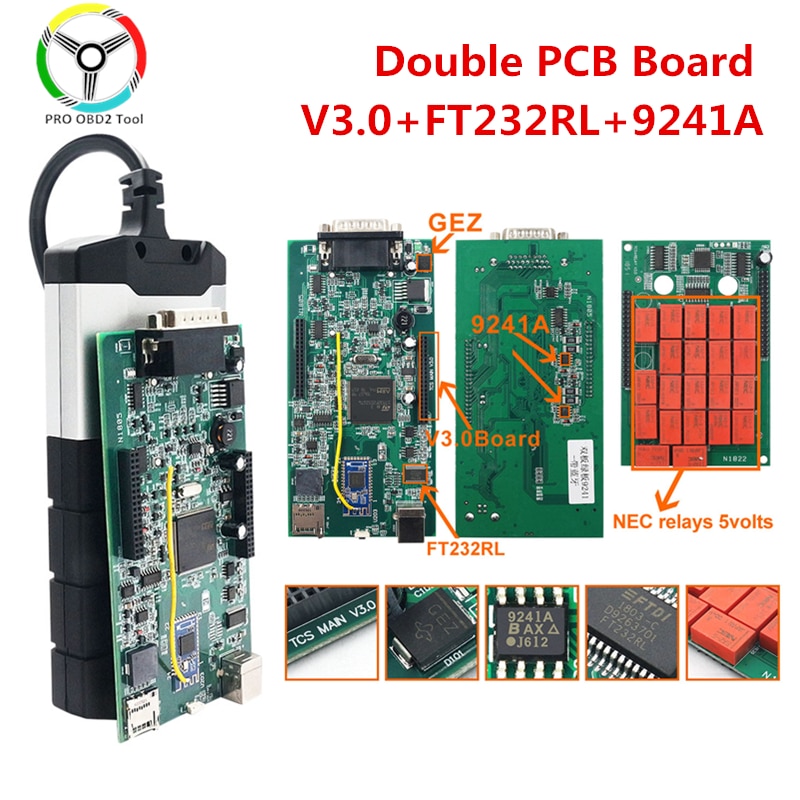

5. The quality of our products is the highest, we use the green dual board with 9241 chips.

6. With USB/Bluetooth Function

In serial we do following
1. Read and erase fault codes
2. Read live data
3. Basic settings
4. Scan function
5. Fully compliant to the eOBD/OBDII standard
1. Manufacture specific serial diagnose
2. Scan function
3. EOBD/OBDII communication
4. Serial Systems
5. Engine
6. Ignition
7. ABS
8. Service reset
9. SRS
12.Comfort system
13.Gear-box etc
Flight Recorder
With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. tcs is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package .
Voltage Check
When tcs is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehiclersquos voltage level of 12 or 24 volts. If the voltage gets too high or too low, tcs will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.
Chassis Number VIN
In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.
Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.
Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.
Packing List

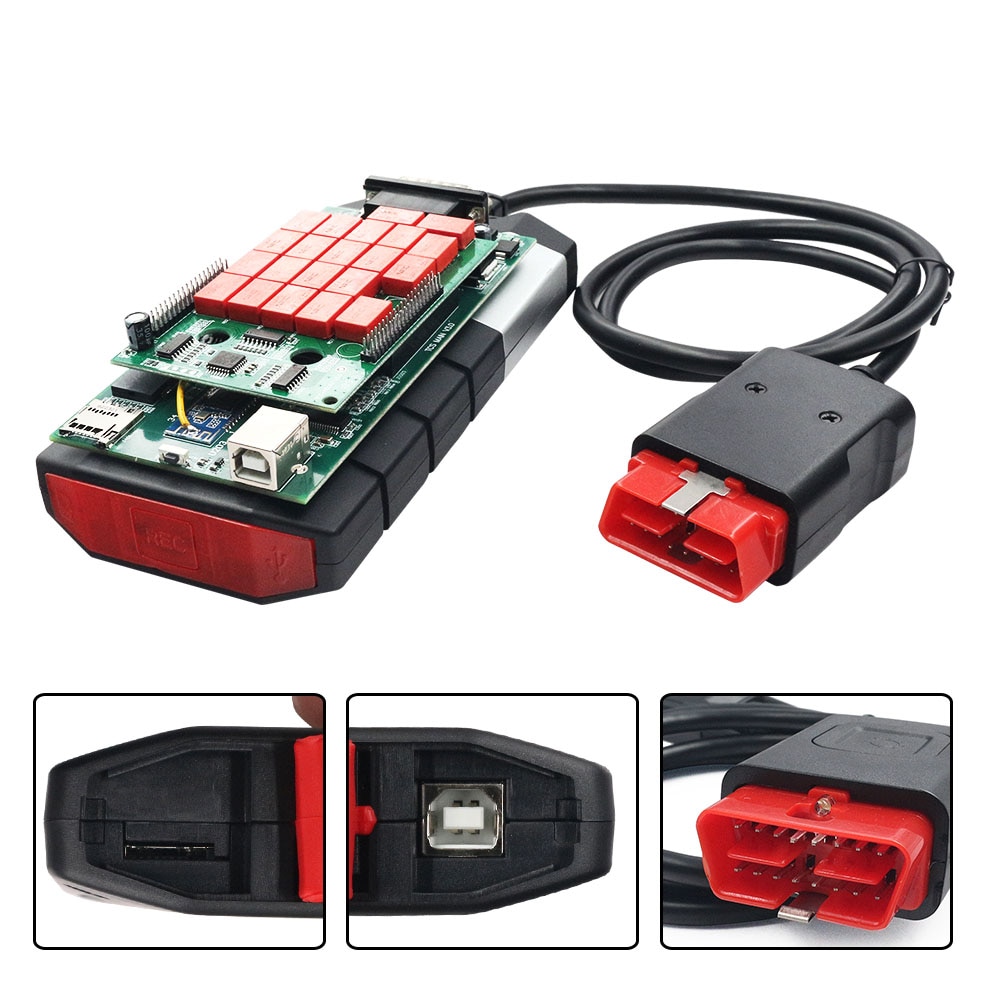

1* TCS main unit (With shell)
1* Software DVD
1*USB cable
1*Led obd2 cable
1*Cartoon box
