• Brand Name: LAUNCH
  • Certification: CE
  • Origin: CN(Origin)
  • Special Features: Truck 24V OBD Code Reader
  • Software Version: Life Time Free Update
  • Language: english
  • Language: French
  • Language: German
  • Language: Spanish
  • Software Update: Yes
  • Hardware Version: Engine analyzer
  • Item Type: Code Readers & Scan Tools
  • Model Name: LAUNCH CR-HD 24V Diesel Truck Scanner
  • Code Read Scanner Support Car: the car that have J1939 J1587 J1708 Protocol
  • Support Languages: English, Spanish, French, Russian,Deutsch
  • Update: Lifetime Free Update
  • Warranty: One Year Warranty
  • LAUNCH CR-HD Features 1: Truck Diagnostic Tool for Volvo MAN Renualt Iveco
  • LAUNCH CR-HD Features 2: 24V Diesel Truck Van Scanner
  • LAUNCH CR-HD Functions 1: Read Code, Clear Error Code for 24V Truck
  • LAUNCH CR-HD Functions 2: Launch 100% Original Truck Car Diagnostic Tool
  • LAUNCH CR-HD Support 24V Car: 6pin, 7pin,8pin,9pin,12pin,14pin,16pin,30pin,37pin Port
  • LAUNCH CR-HD OBD2 Functions: Read Clear Error Code,O2 Sensor test,On-board Monitor Test
  • LAUNCH CR-HD 12V Car Code Reader: VIN,EVAP System Test,DTC Code lookup
  • LAUNCH CR-HD OBD2 Model: View Freeze frame, I/M Readiness

LAUNCH Creader CR-HD 24V Truck Diagnostic Tool For Volvo HOBD Diesel 24V Heavy Truck Scanner For MAN OBD2 Code Reader Van

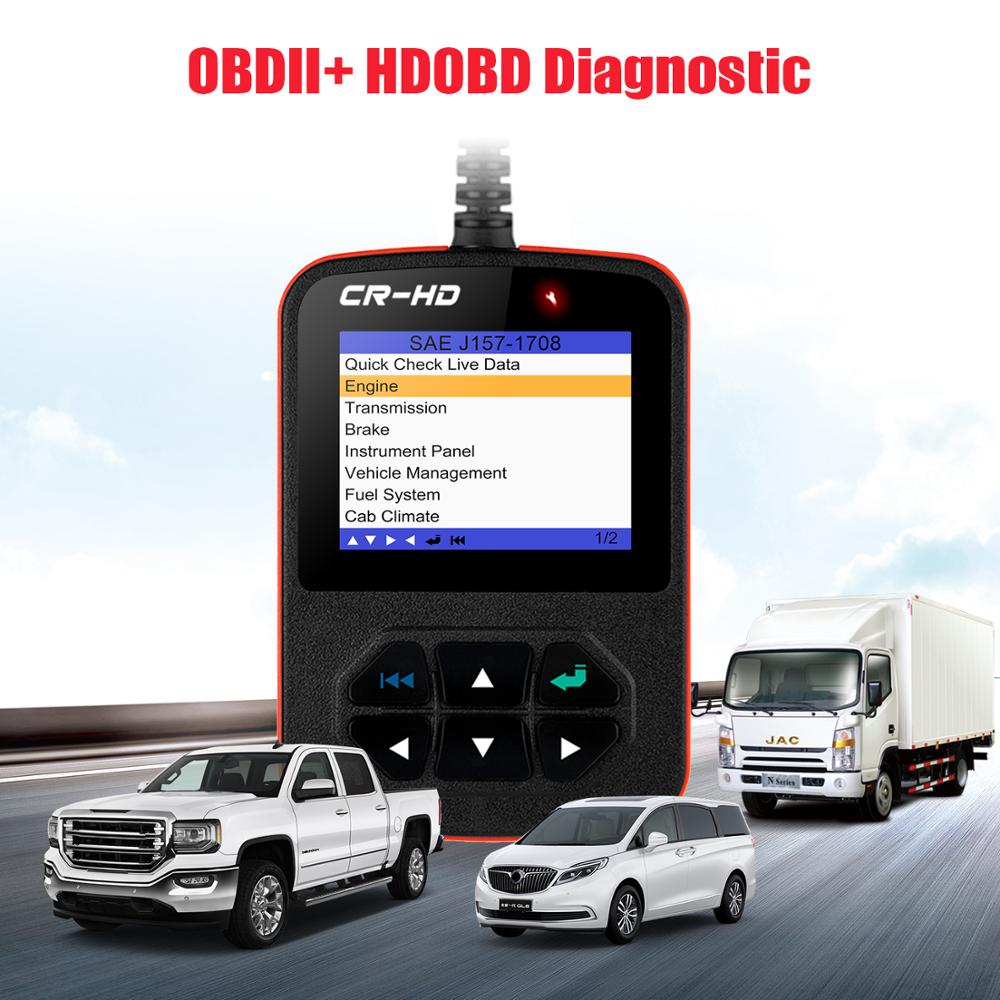

CR-HD is the best heavy truck code reader which Launch latest developed.It has integrated the basic diagnostic functions of three heavy duty truck standard protocols (J1939,J1587 and J1708) Applied 2.8" color LCD,equipped with 6PIN and 9PIN additional diagnostic connectors, which can provide highest quality, most convenient, and most reliable diagnostic service for heavy duty trucks.

It also can support basic OBD2 function for 12V car.

LAUNCH OBD Creader CR-HD Support Language:

English, French Spanish, German

LAUNCH CR-HD For Man Diagnostic Tool Description:

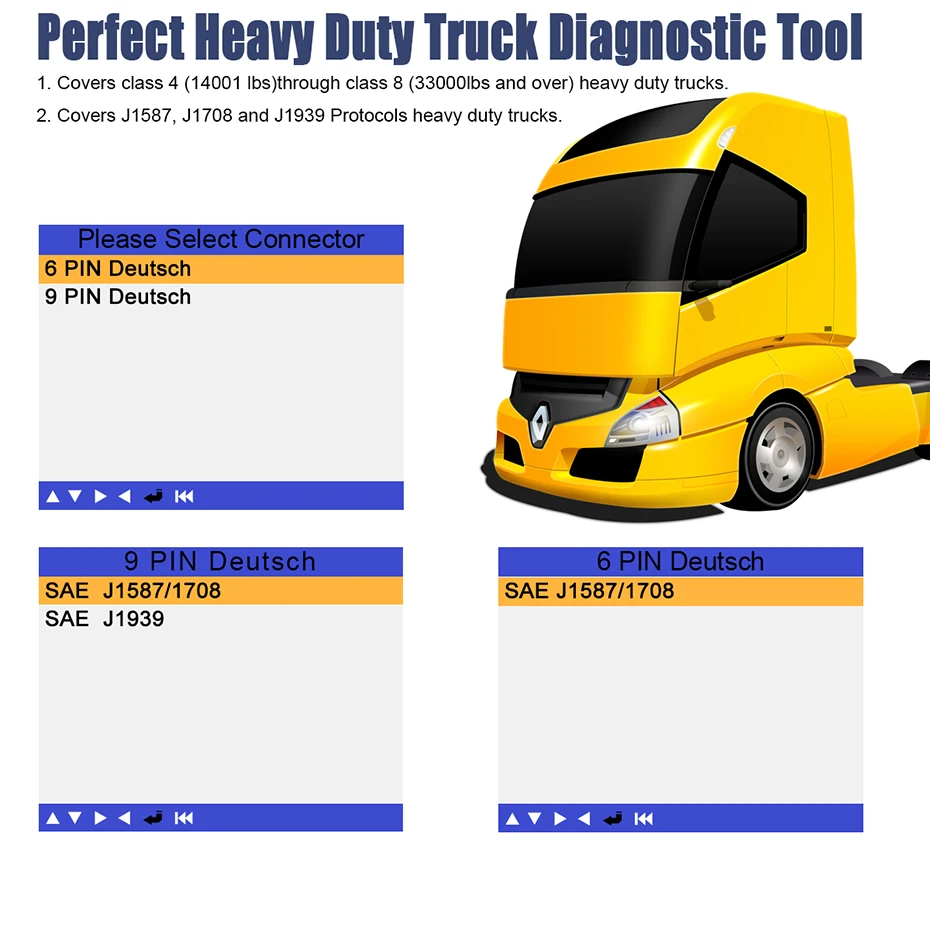

1.Covers Class 4 (14, 001 lbs. ) through Class 8 (33, 000 lbs. and over) Heavy Duty Trucks.

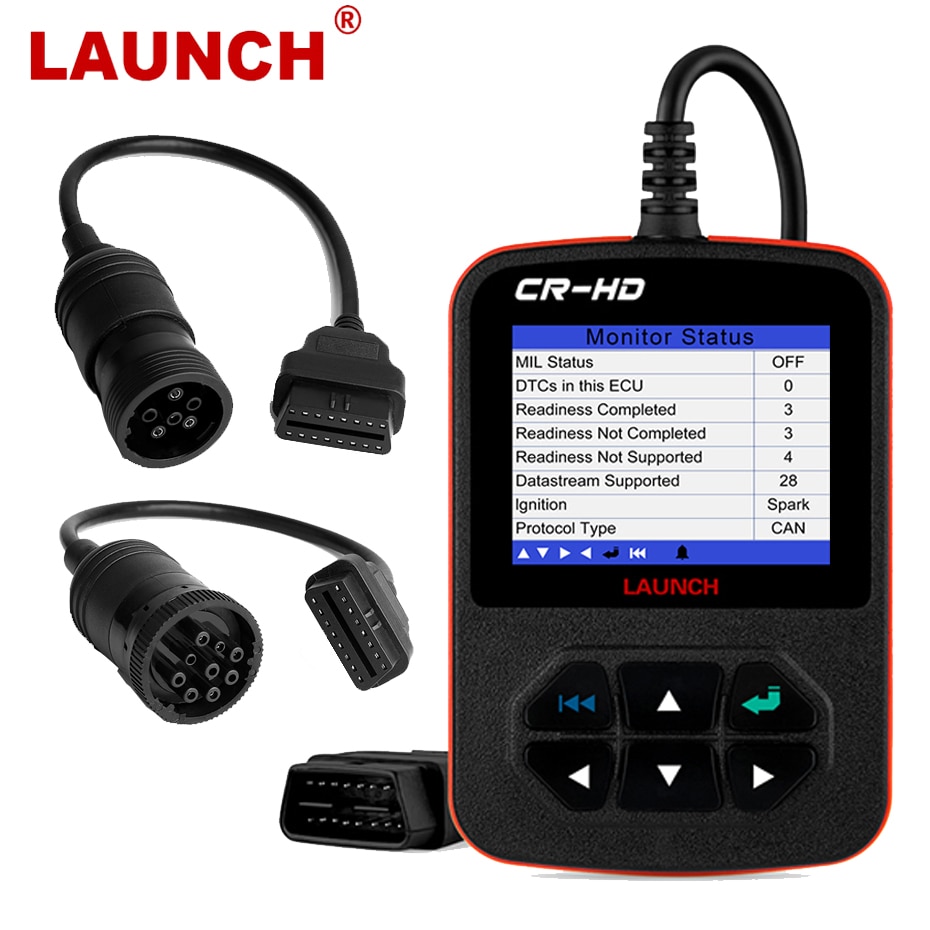

2.Includes 6-pin and 9-pin Deutsch connectors PLUS OBDII 16-pin connectors.

3.Provides J1587, J1939 and J1708 protocols- Heavy Duty Standard.

4.Read and Clear Active and Inactive Fault Codes. Easily determines the cause of the Check Engine Light(MIL). Turns off Check Engine Light (MIL), clears codes and resets monitors.

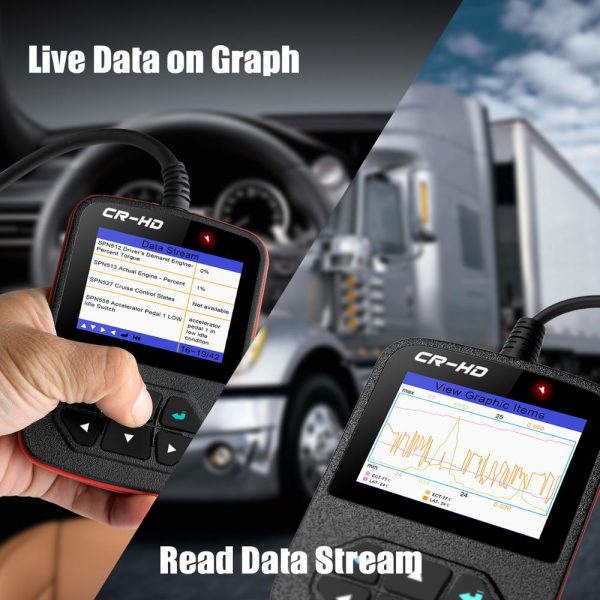

5.Reads, records, graphs & playbacks live sensor data. Reads live O2 sensor test data and EVAP data stream, displays monitor and I/M readiness status (emissions).

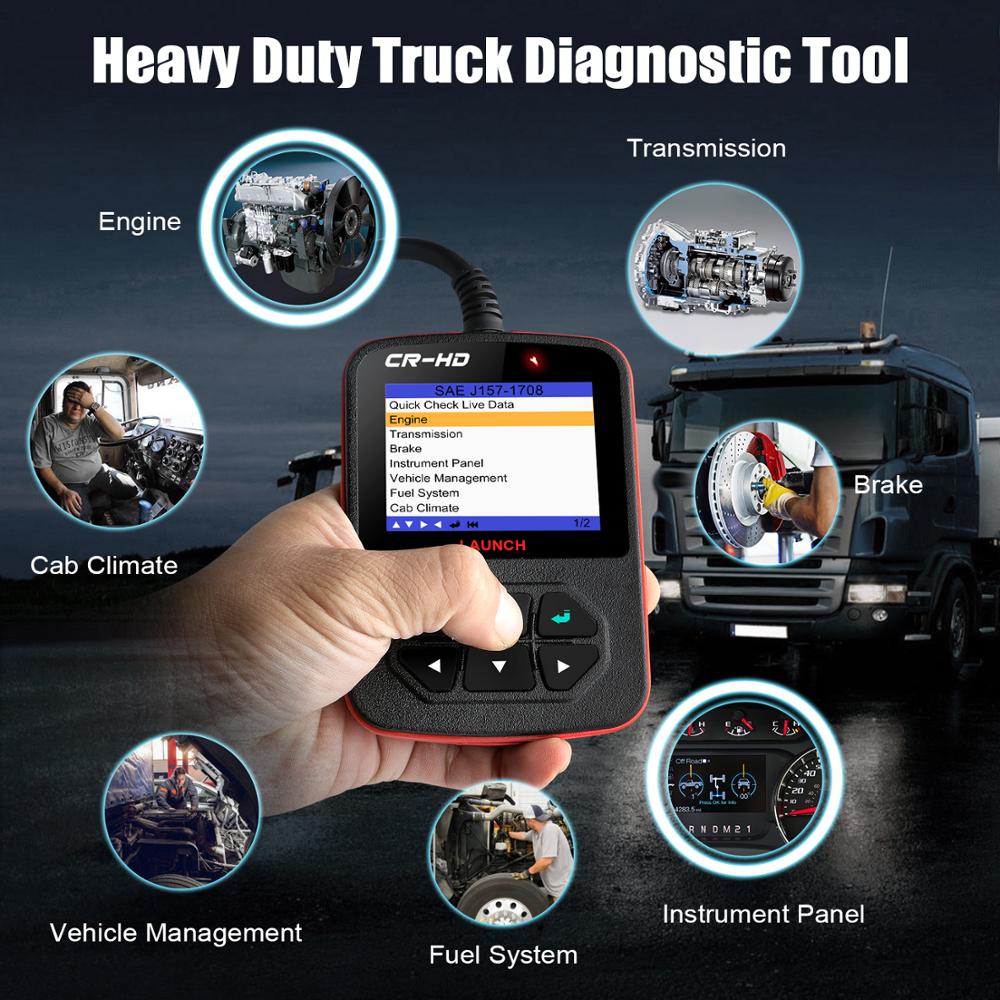

6.Coverage for Engine, Transmission, Brakes and More via Heavy Duty Standard.

7.Monitor all Data and View Live Data Streams.

8.Full color 2. 8 LCD Display with extra long 6. 5 ft. Cable.

9.Life time free internet updates.

The Function for 24 Truck :

Support System : Engine system , Transmission System , instrument panel system , ect

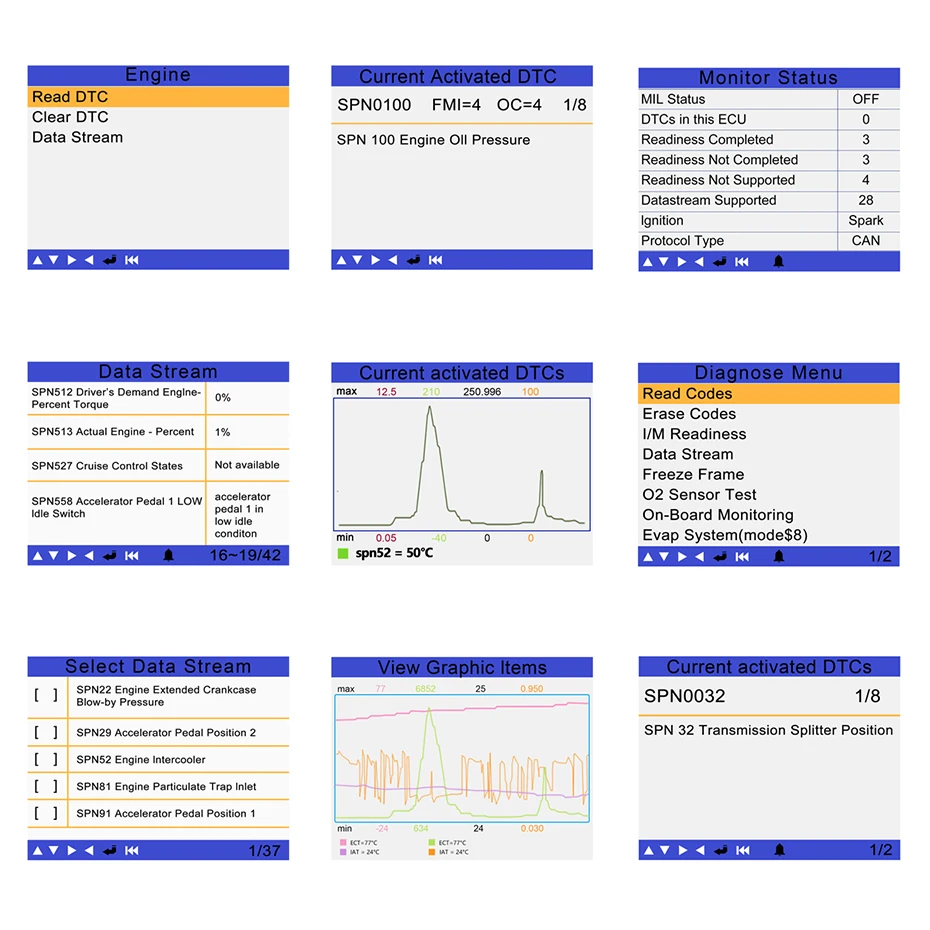

Function : Read troble codes , clear troble codes and read data stream information

Support protocols: J1939,J1708,SAEJ1979(OBDII)

The Function For 12V Car :

Read fault ,Delete Fault code , Live Data ,Read Vehicle information ,O2 Sensor Test ,EVAP System Test , On-board mintor Test , DTC Code lookup , IML Fault indicator , View Freeze frame, I/M Readiness

Support OBD 2 protocols car :

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)

Support Car :

American Car : Need Standard OBD2 Protocols from 2000 to now
European Car : Need Standard OBD2 Protocols from 2003 to now
Japanese/Korean Car: Need Standard OBD2 Protocols from 2006 to now
Chinese Car: Need Standard OBD2 Protocols from 2009 to now

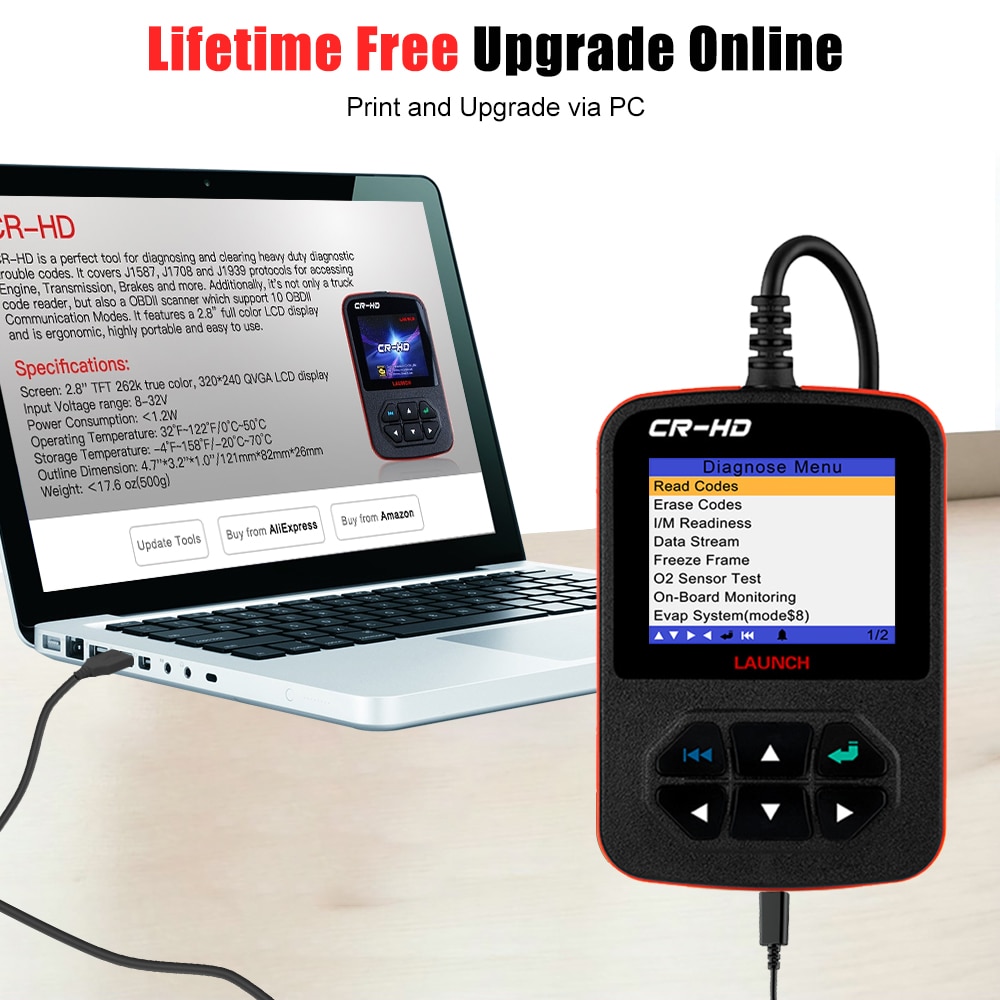

LAUNCH Truck OBD Scanner CR-HD Update Guidence:

Update: free upgrades on LAUNCH official website.

1. Plug CR-HD with your laptop via USB cable.
2. Go to official website download "CReader Client Update Tool", and install on laptop.
3. Download the update software and choose language version.
4. Click Update, enjoy new version.

Tips: It only can be updated on Windows XP/7 PC. If the device not be recognized during updating, please check if the driver is installed, you can find the driver in the device manager.

LAUNCH CR-HD Truck Scanner Supported Car List

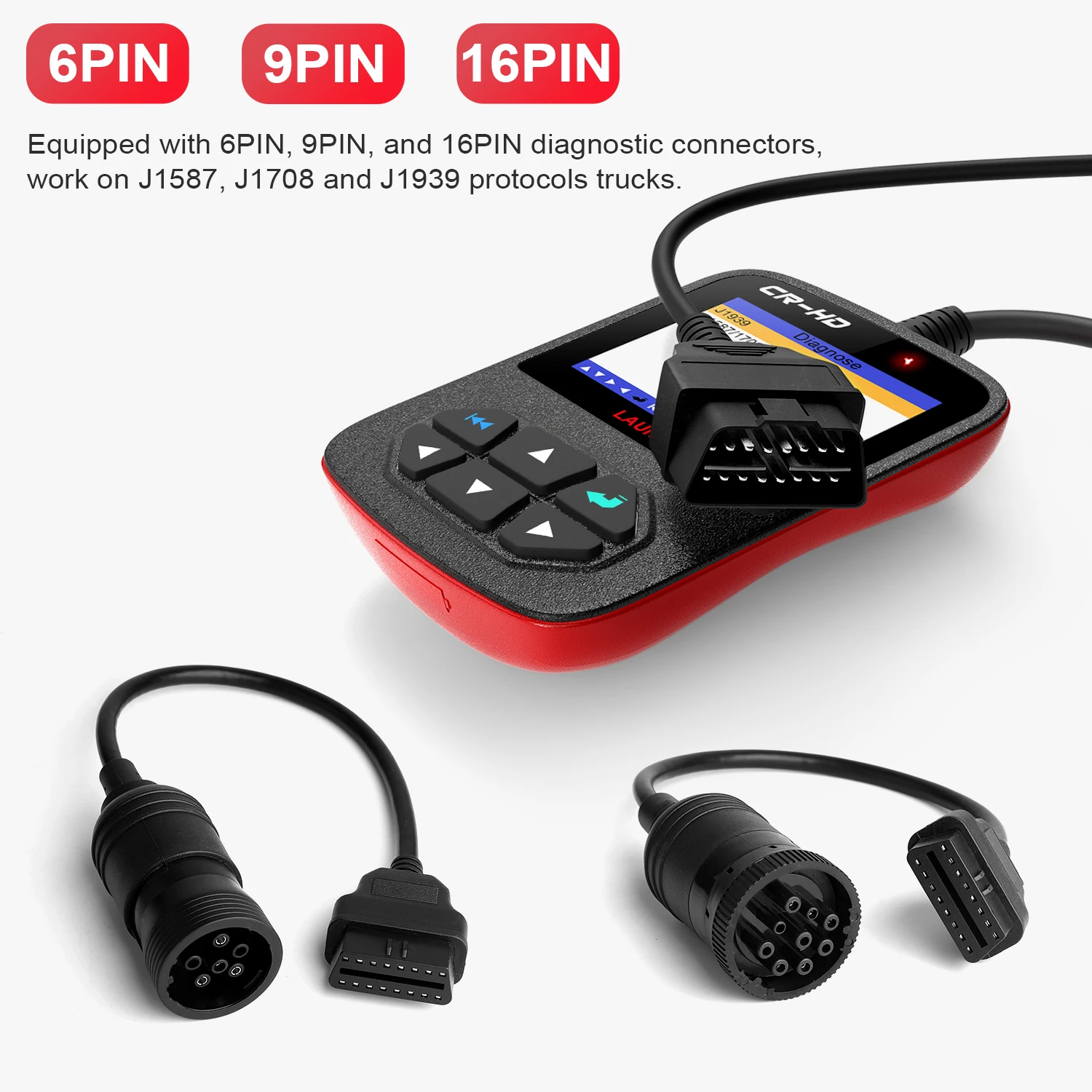

Support 6PIN, 9PIN, and 16PIN diagnostic connectors
Support J1939,J1587 and J1708 Protocol.

If you choose full version, more connector are contained.

Note:If you not sure if this device can support your car or not , pls leave us message. xxx car brand, xxx car model ,xxx year,Thank you.

LAUNCH Truck Scanner CR-HD parameters:

-Screen: 2.8", 262K true color, 320*240 LCD
-Input voltage range: 8~36V
-Operating current: typically <100mA
-Typical power consumption: <1.2W
-Wire connection: 6PIN, 9PIN, 16PIN diagnostic connector
-Environmental temperature: 0degC~50degC
-Storage temperature and humidity: -20degC~70degC@ RH 60%
-External dimension: L*W*H=121*82*26mm

Basic Version

1*Main Unit
1*6 Pin connectors
1*9 Pin connectors
